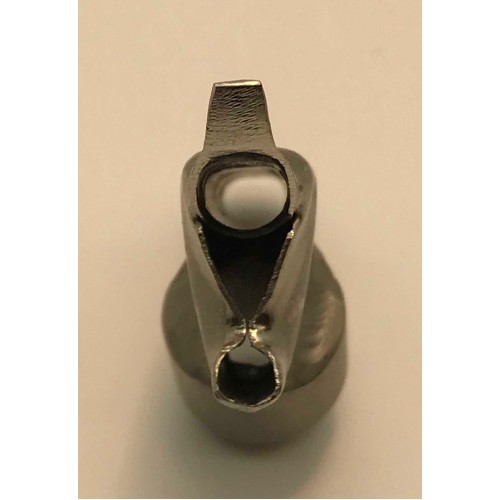

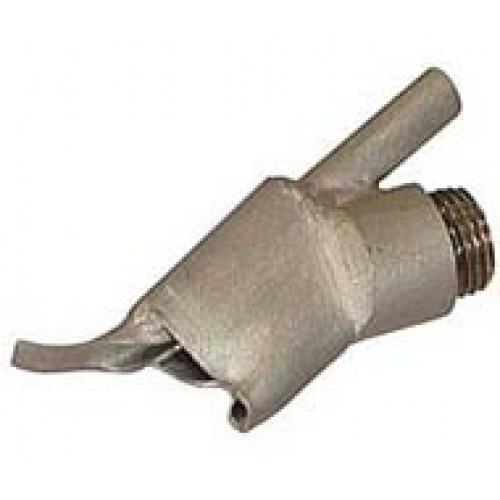

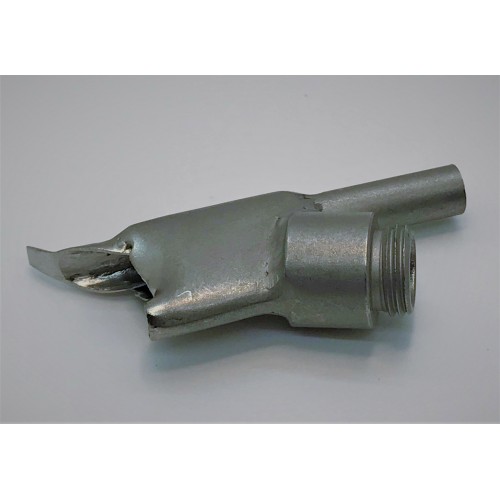

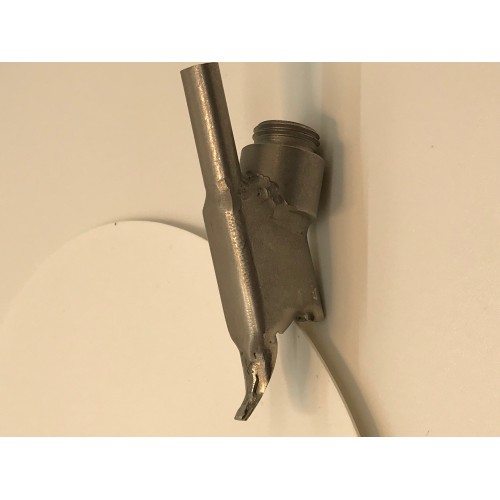

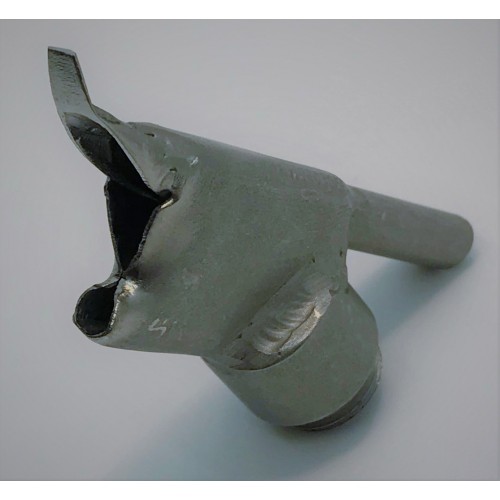

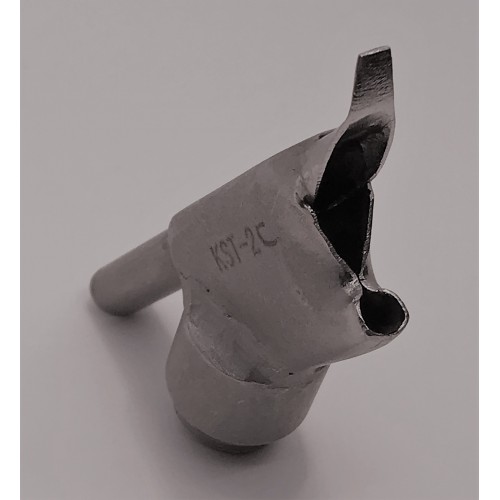

For triangular polypropylene, high density polyethylene and other high temperature thermoplastics rod, equivalent to 5/32" when used with any of the 40s Series and FUSION Series welders. Applications for the KS-2C tip include the following: Plating, chemical processing and waste treatment tanks; Wet benches and processing stations; laminar flow benches; silicon wafer cleaning equipment; wave soldering, photo processing and laboratory equipment; etching stations; Plating barrels Laboratory and Clean Room Sinks and Wet Process Benches.

OD = 0.54

ID =   0.41

ID For plastic Profile Nozzle = 0.25

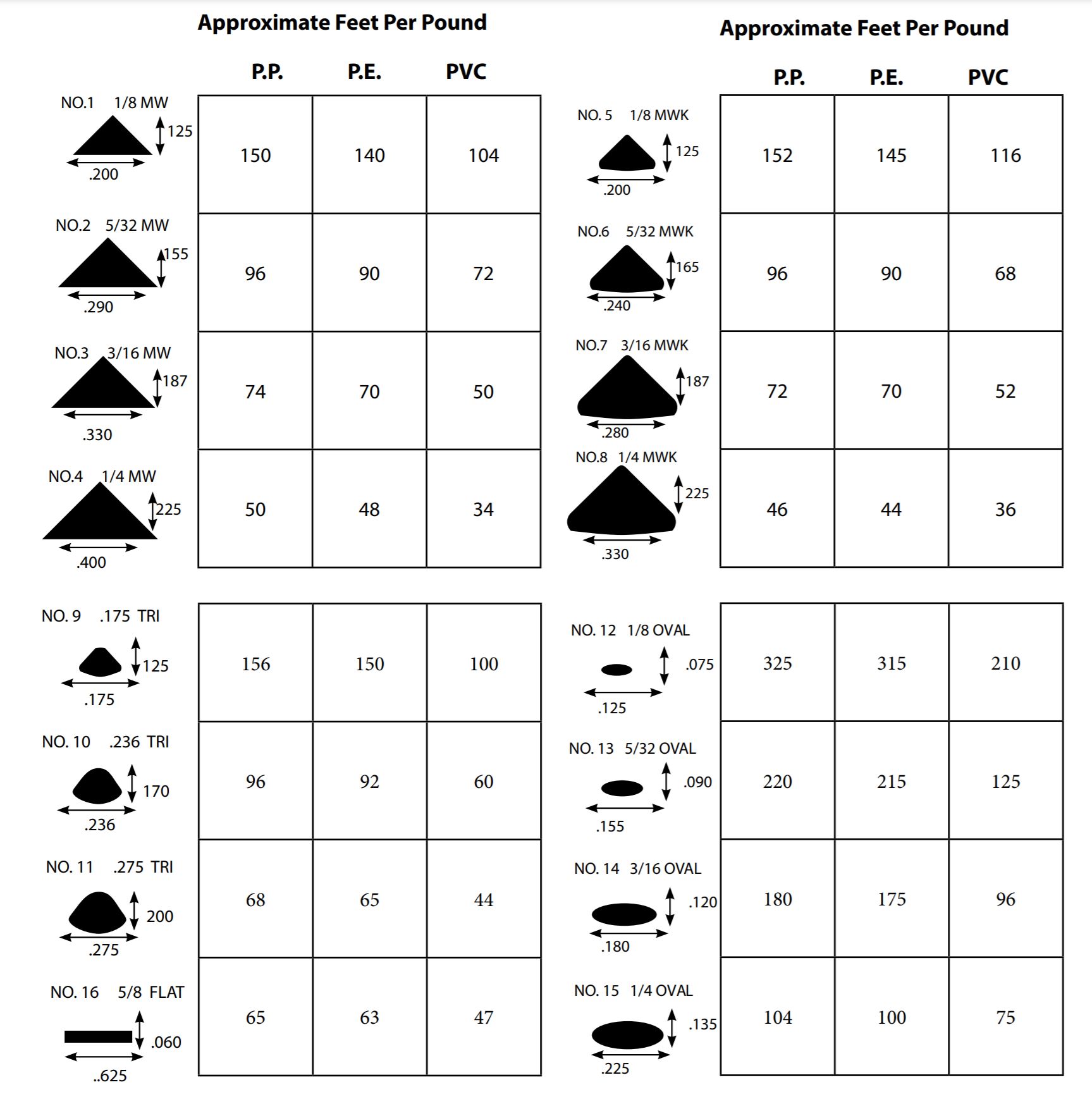

WELDING ROD SIZE 5/32 MW, MWK or .236 TRIANGULAR ROD
